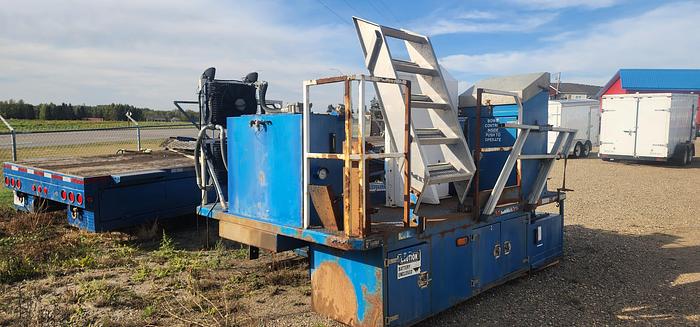

Pressure truck TWS-600 SPM Triplex plunger pump rigging

Pressure pump ( removed from chassis ) spec when built

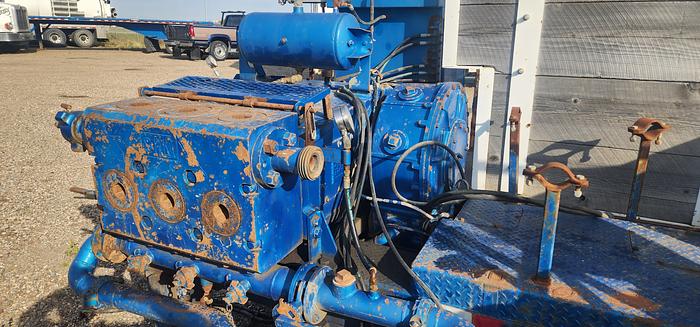

*TWS-600 S SPM TRIPLEX PLUNGER

*4 1/2 PLUNGERS

*MAWP: Max allowable working pressure with 4 1/2 Plungers is 6288psi

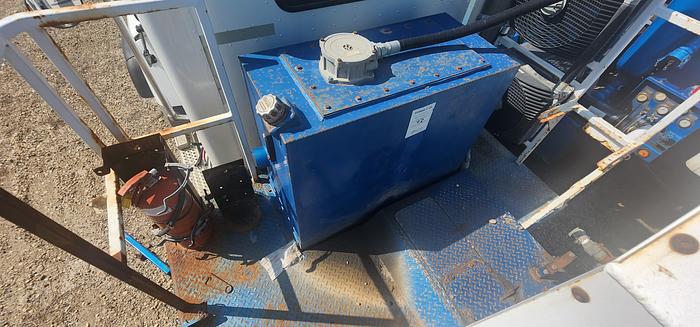

* remote lube system as per SPM specs include : reservoir , lube pump , relief , suction strainer and filters

* 5:1 ratio

* load pump: AL -50 complete chain coupler

* centrifugal : Faulk coupler

* Main Driveline : Complete 1810 c/w new slip and tube

* Triplex driveline: complete 1810 with U joints , yokes companion fig bolts

*PTO Driveline : Complete 1350 with U-joints , yokes comp fig bolts

* High pressure manifold :

- weld fittings : (1) 2" sch 160 fitting package for standard reverse flow manifold (5000 CWP)

-unions : (8) 2" fig 602 welco union's

- valves : ( plug , ball size , and CWP ) (7) 2" Demco Gate Valve (5000 psi CWP )

- relief valve : (1) 2" Oteco 5000psi

-pressure Guage: (1) 0'6000 psi c/w 2" fig 1502 sending unit (1) small face type f mud gauge

-check valve ( size , style amd CWP ) (1) 2" crown check valve (5000psi)

-weld fitting : (1) complete sch 40 manifold

- wafer valve (3) 3" keystone c/w Buna seat and cast disc , (1) 4" keystone c/w Buna seat and cast disc , (1) load pot

-remote clutch control : (1) rexroth actuator

-Dropbox selector ( x2 for 3 pos box ) (2)WM -782A

-PTO Selector (2) Chelsea 1-way

-oilpressure guage: (1) 0-500 wika CBM c/w mounting brkt for triplex lube pressure

- air pressure guage : (1) 0-160 psi 2 1/2" wika cbm c/w mounting brkt

-hyd chg press guage : (1) 0-600 psi 2 1/2" Wika CBM c/w mounting brkt

- 4 1/2" CPW guages (1) 0-300 psi LM

Pneumatics (1) complete brass synflex and fitting package

- manifold: ( 14) 1/4" 3M half-collars

Hydralic System: 135HP

- piston pump ( centrifugal ) (1) Sauer 90L130

- lube pump: included with SPM

- gear pump ( bowie ) : (1) Commercial grade single gear pump for bowie

- piston motor ( centrifugal ) : (1) Sauer 90M 100

- gear motor ( bowie ) : (1) oms-100 Gerotor motor (Danfoss )

-cooler : (1) ASA256 Cooler

-

And much more
