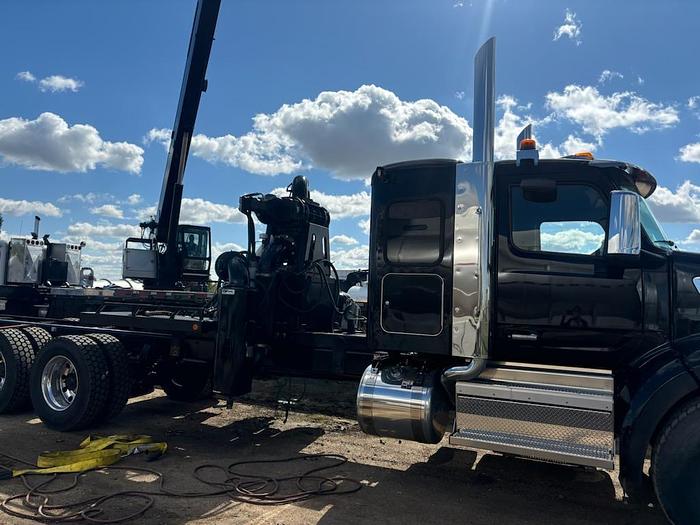

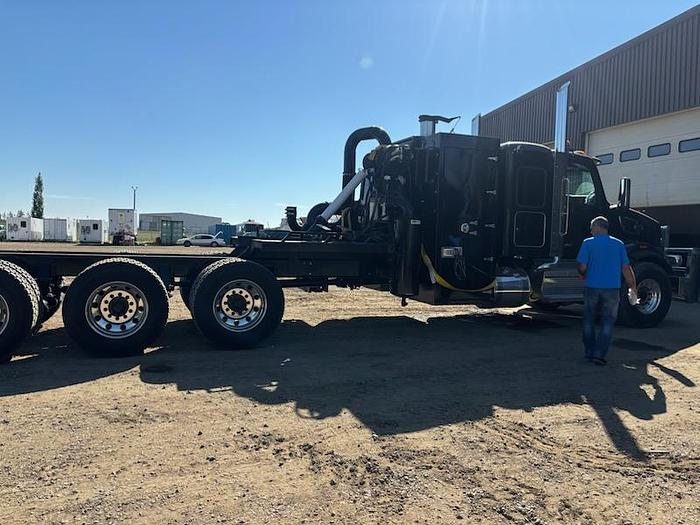

ORDER THIS CODED COMBO VAC UNIT WITH BOOM ON NEW CHASSIS .. planned refurbish

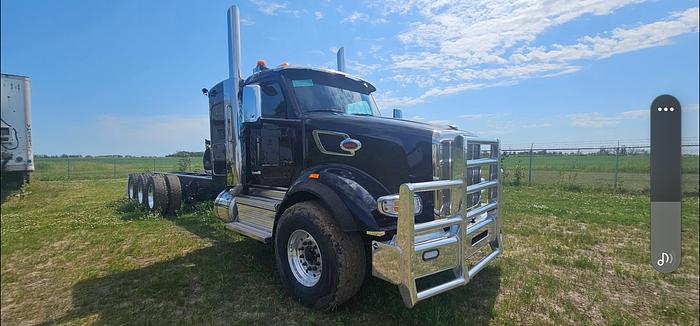

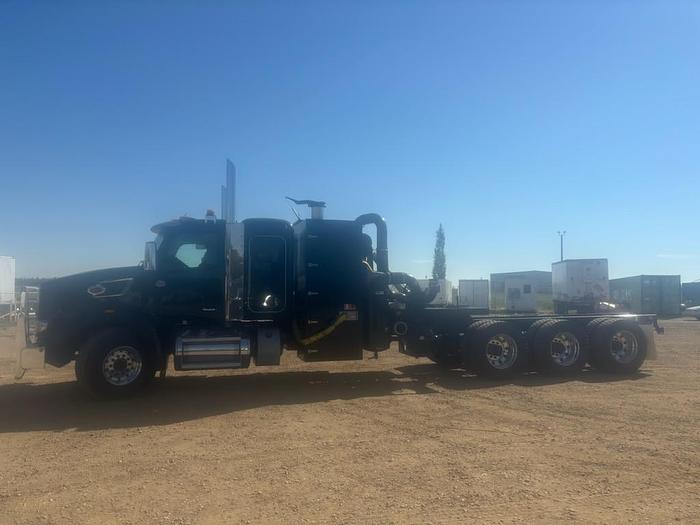

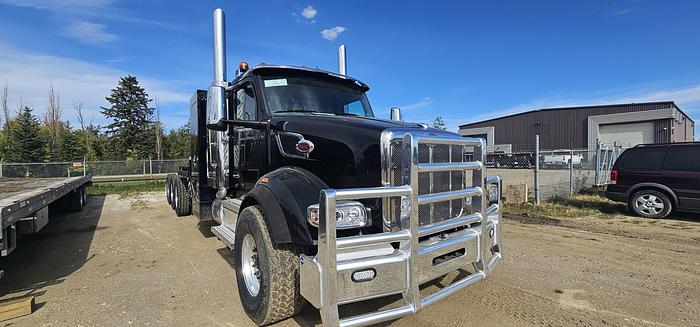

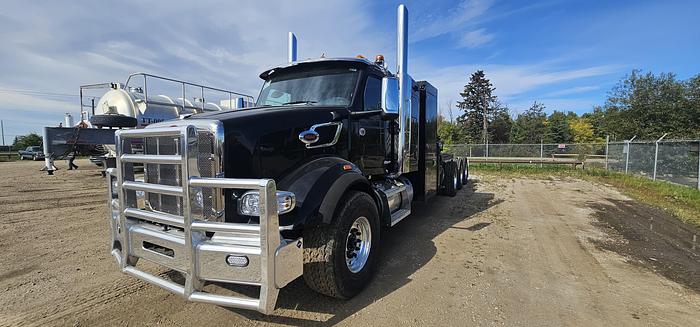

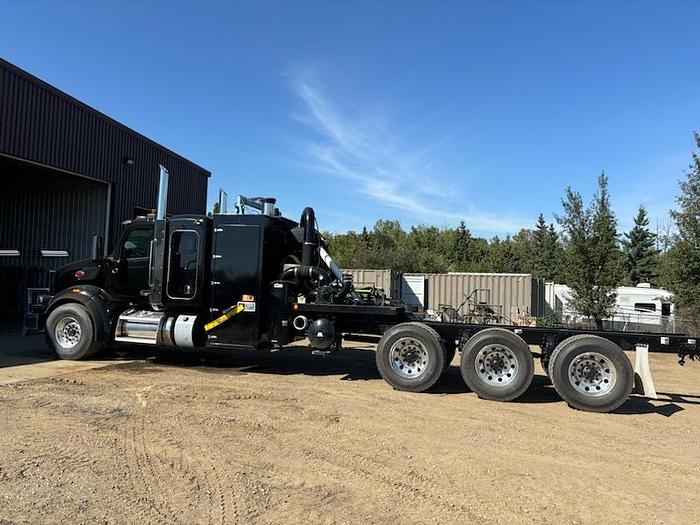

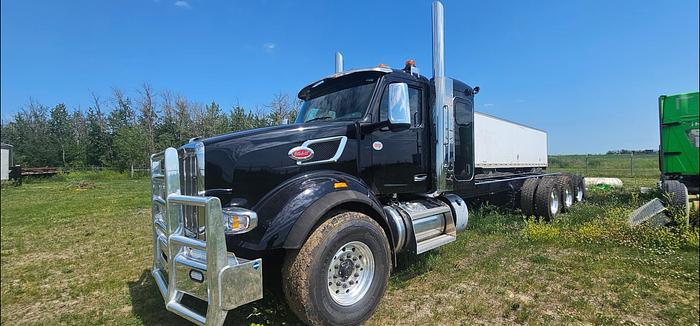

2025 PETERBILT 567 8X6 STRAIGHT TRUCK , 36" SLEEPER, 20+ RZ166 , X15 565HP , 18918B , 4:10 RATIO , AIR TRACK , rue bumper , strobe lights , Custom Vac Services certificate of compliance , this will be a certified assembly fully documented meeting all compliance regulations on this 822 combo coded tank with boom , linde hydralics , 3560 cat , 8" boom .

color options on Tank could be extra if need to be changed

note: this is a slightly preowned componets with well documented 350 hours on it . The tank is a well documeted metal value thatbwill meet the original spec fromnwhen it was built everything gone through checked and comes with a normal body warranty and restamped with the date of the assembly and modification plates . Remember metal is metal

let us know if you need financing OAC

Rental Purchase Options Agreements Available

Note : below was spec from original build so some items maybe subject to change . Just confirming every componet

Hydraulic Boom:

8" 270 deg Top Mounted Hydraulic Boom

Accumulator for knife gate compliance

8" Boom Hose with aluminum end

One hard wired pendant control

One wireless re,ote control

Hibon 822 PD Vacuum Blower

➤ 2650 CFM Free Air Rating

27" Hg Maximum Vacuum @ sea level

Oil Free Operation (Except Sealed Reservoirs)

Blower Clearance & Timing Inspection Prior to Installation

➤ 8" Four-Way Divertor Valve (Vacuum to Pressure Modes)

➤ 8" Double Door Check Valve (To Prevent Blower Back Spin)

Prestage Filter assembly

High Torque/High Temp Blower Drive Coupling with Flexible Insert

One 8" Exhaust Silencer, One 8" Intake Silence

8" cyclone with bottom cleanoput and 2" heated air actuated drain valve

Hydraulic System (Linde Closed Loop Design):

➤ hydraulic pump for triplex plunger pump

➤ hydraulic motor for triplex pump

➤ Single gear pump for auhillary functions ➤ Variable Speed Control for Blower

➤ Torque control for vac pressure

➤ 90 Imperial Gallon Hydraulic Oil Reservoir c/w Intank Filter, Vent Temperature & Level Indicators, and Inspection Hatch

➤ 12 volt Oil Cooler

➤ Mailhot 3-Stage double acting Hydraulic Dump Cylinder

➤ Double Acting Rear Door Hydraulic Cylinder with Counter Balance Valve

➤ Fittings and Hydraulic Hose as required

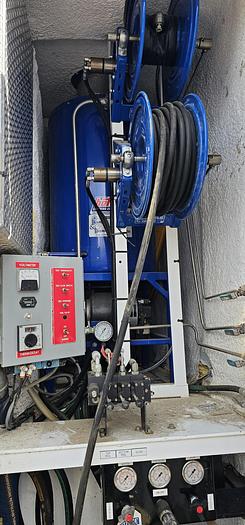

Wash System:

➤ CAT 3560 Pump (Rated 18GPM @ 3000 PSI Max)

➤ Two Hydraulic Rewind Hose Reels

➤ 100'ft x 1/2"in 2 wire braid pressure hose

➤ Gun, wand, nozzle and quick coupler

➤ 100'ft x 3/8"in steam hose temperature rated ➤ One steam wand, nozzle and quick coupler

➤ Steel Wash Cabinet, small door for hose access, heater and lights

➤ Independent Hydraulic Controls for Hose Reels & Wash Pump Foam insulated

Hot Water System:

➤ Hot shot 700,000 ( note believe this is actuall 980 - have to confirm ) BTU/hr Heater, c/w Temp gauge, relief valves,

➤ Honey well control, and diagnostic panel

➤ Maximum 340 deg Auotmatic Shut-off on heater system

➤ Solid brass 18gpm flow switch

➤ 3000 watt inverter

➤ Wet Steam kit

➤ Glycol Flush Tank and air blow down system

➤ All stainless Steel Plumbing

➤ One 60" Steel Deck Tool Box with steel door

Electrical System:

➤ Waterproof Main Circuit Control Box - Self Contained Power Supply

➤ Sealed Wire Harness

➤ Smartbox electrical system all weather seal

➤ L.E.D. lamps (Clearance, Park, Signal)

➤ Sealed LED Reverse Lamps

➤ Four Work Lights

➤ High temperature shut-off switch

➤ Blower switch One in cab and one on deck D/S

➤ Electrical System Shut-Down at Key
